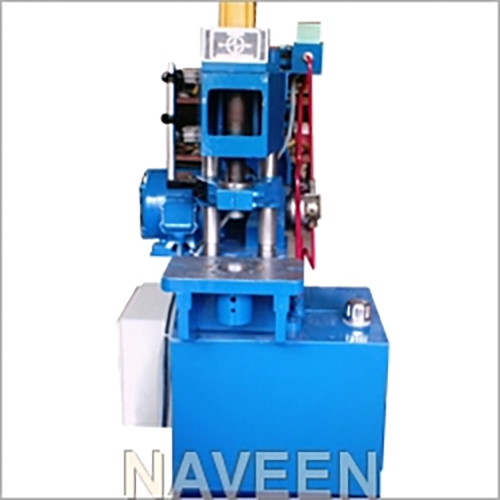

Tube End Bedding Machine

250000.00 - 500000.00 INR/Unit

Get a Price/Quote

Product Details:

Voltage 415V, 3 Phase
Noise Level <70 dB
Production Capacity 200 Tubes/Hour
Power Rating 3 kW
Accuracy 0.2 mm
Drive Chain/Direct Drive
Operating Temperature 5C to 50C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Tube End Bedding Machine Price And Quantity

Price Range 250000.00 - 500000.00 INR/Unit
Minimum Order Quantity 1 Unit

Tube End Bedding Machine Product Specifications

Production Capacity 200 Tubes/Hour
Noise Level <70 dB
Color Blue & White
Voltage 415V, 3 Phase
Dimension (L*W*H) 1500 x 800 x 1600 mm
Lubricating System Centralized Lubrication
Machine Type Mechanical/Hydraulic Press
Technology Hydraulic Forming
Accuracy 0.2 mm
Surface Treatment Paint Coated
Power Rating 3 kW
Operating Temperature 5C to 50C
Drive Chain/Direct Drive
Power Source Electric
Motor Power 3 HP
Frame Type Heavy Duty Welded Frame
Connectivity Options Start/Stop Switches, Emergency Button
Usage & Applications For making bedded ends on steel, copper, or aluminum tubes in furniture, automotive, and HVAC industries
Cooling System Air Cooled
Pressure Hydraulic (up to 150 bar)
Frequency 50 Hz
Control System PLC Based
Power 3 kW
Product Type Tube End Bedding Machine
Weight (kg) 950 kg

Tube End Bedding Machine Trade Information

Supply Ability 1 Unit Per Month
Delivery Time 1-8 Week
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Main Domestic Market All India

Product Description

We are an acclaimed name engaged in offering our precious clients superior quality Tube End Bedding Machine that is primarily used for bending various tubes. The machine provided by us is fabricated by making use of optimum quality components and sophisticated technology in synchronization with set international standards. In order to ensure its excellent functionality, our quality experts verify this machine on various parameters of quality. Moreover, we provide this Tube End Bedding Machine in various models and technical specifications.

Features:

Hassle free performance
Low maintenance
Low power consumption
Rust proof body

Precision Hydraulic Forming Technology

Utilizing advanced hydraulic forming, the Tube End Bedding Machine delivers high accuracy (0.2 mm) and repeatability, ensuring consistent tube end quality. The system is powered by a sturdy 3 kW motor and operates seamlessly at pressures up to 150 bar, making it reliable for continuous industrial use in applications where precise bedding is essential.

User-Friendly and Safe Operation

Equipped with a PLC-based control system, the machine simplifies operation and monitoring. It features start/stop switches, an emergency button, and operates at a low noise level below 70 dB. The heavy-duty welded frame and efficient cooling and lubrication ensure both operator safety and machine longevity.

Versatile Industrial Applications

This machine is tailored for use in furniture, automotive, and HVAC manufacturing, accommodating steel, copper, and aluminum tubes. Its high production rate of up to 200 tubes per hour and compatibility with standard industrial power supplies (415V, 3 phase, 50 Hz) make it a versatile solution for diverse fabrication needs.

FAQs of Tube End Bedding Machine:

Q: How does the Tube End Bedding Machine operate?

A: The machine operates using hydraulic forming technology, powered by a 3 kW electric motor. Hydraulic pressure (up to 150 bar) shapes the ends of tubes with high precision, with all functions managed via a user-friendly PLC-based control system.

Q: What types of tubes and industries can this machine be used for?

A: It is suitable for processing steel, copper, or aluminum tubes and is commonly used in the furniture, automotive, and HVAC sectors to produce bedded tube ends quickly and accurately.

Q: When should maintenance be performed on the Tube End Bedding Machine?

A: Routine upkeep, such as checking hydraulic oil levels and centralized lubrication, should be performed according to the manufacturers recommended schedule, with regular inspections ensuring optimal performance and machine longevity.

Q: Where can the Tube End Bedding Machine be installed?

A: Thanks to its compact dimensions (1500 x 800 x 1600 mm) and low noise output, the machine can be conveniently installed in workshops or factory floors. It only requires a stable power supply (415V, 3 Phase) and adequate ventilation for air cooling.

Q: What is the step-by-step process for making bedded tube ends using this machine?

A: First, the operator places the tube into the dedicated fixture. After securing it, the PLC system controls the hydraulic press to form the bedded end to precise specifications. The air-cooled and lubricated system then automatically completes the cycle and the tube is removed.

Q: What are the key benefits of using this machine?

A: Key benefits include high productivity (up to 200 tubes/hour), excellent forming accuracy (0.2 mm), energy-efficient 3 kW operation, low noise, and robust construction. Its centralized lubrication and easy-to-use controls reduce downtime and boost operational efficiency.
